Home >> Products >>Touch Monitor >> M101T06
Product Detail

M101T06

Short Description:

This 10.1" monitor combines a 10-point capacitive touch screen with a 320 nits

high-brightness panel. Featuring versatile interfaces like HDMI, VGA,AV it also

supports customizable configurations. The IP65-rated front panel ensures

durability and flexibility.


Model No:                      M101T06

Display:                         10.1"/1920×1200/320 nits

Input:                             HDMI,VGA,AV

Optional:                       Touch Function, VESA Bracket

Feature:                        Capacitive Touch Screen

Audio:                            In/Out Speaker, Earphone Jack

Collect
  • Product Detail
  • Specifications



DISPLAYModel No.M101T01/M101N06
Display Screen101" 8 bit IPS
Physical Resolution1920x1200
 Aspect Ratio16:10
Brightness320cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI1
VGA1
USB touch1
USB multimedia1
AUDIO   IN/OUTEarphonr1
PC AUDIO IN1
Speaker1
POWERInput VoltageDC 12V
Power Consumption≤15W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension(YL-M101C01) 264mm×178mm×28.6mm
 Dimension(YL-M101N01)264mm×178mm×28.6mm

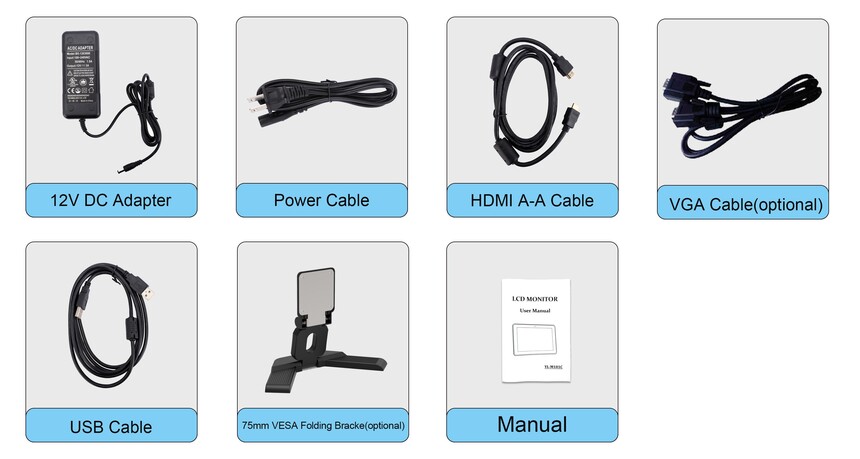

Accessories




×
