M156T01

Short Description:

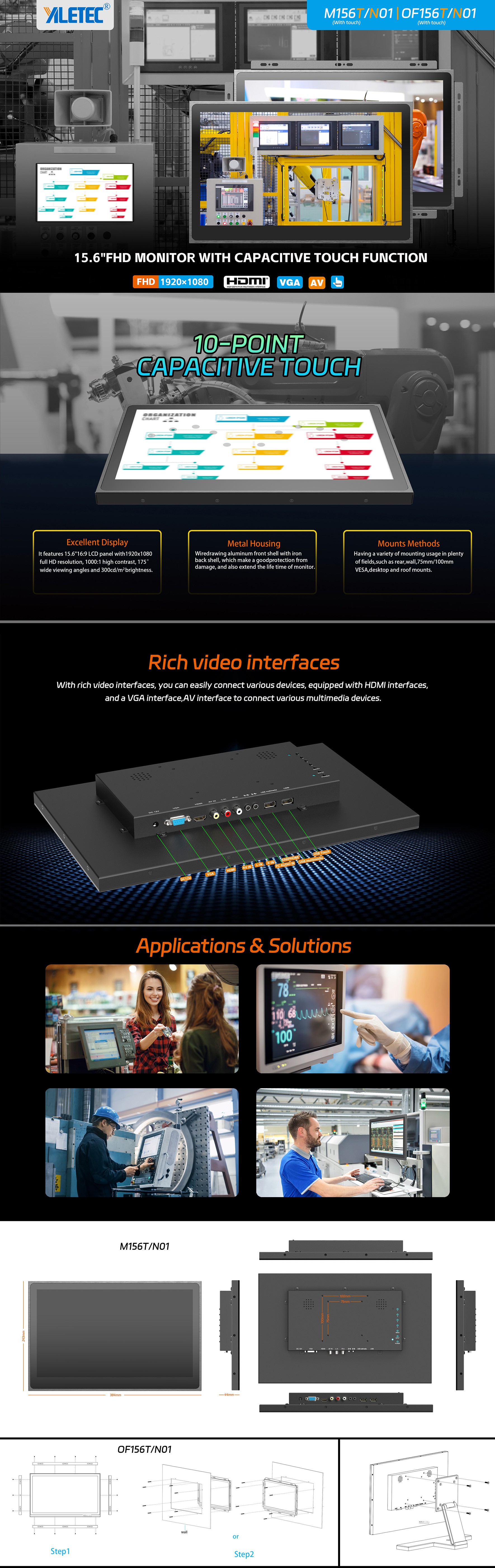

This 15.6" monitor combines a 10-point capacitive touch screen with a 250 nits

high-brightness panel. Featuring versatile interfaces like HDMI, VGA,AV it also

supports customizable configurations. The IP65-rated front panel ensures

durability and flexibility.


Model No:                      M156T01

Display:                         15.6"/1920×1080/250 nits

Input:                             HDMI,VGA,AV

Optional:                       Touch Function, VESA Bracket

Feature:                        Capacitive Touch Screen

Audio:                            In/Out Speaker, Earphone Jack

Collect
  • Product Detail
  • Specifications




DISPLAYModel No.M156T01/OF156T01
Display Screen15.6" 8 bit IPS
Physical Resolution1920x1080
 Aspect Ratio16:9
Brightness250cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI1
VGA1
AV1
USB touch1
USB multimedia1
AUDIO   IN/OUTEarphonr1
PC AUDIO IN1
Speaker1
POWERInput VoltageDC 12V
Power Consumption≤25W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension384mm×243mm×44mm
Weight

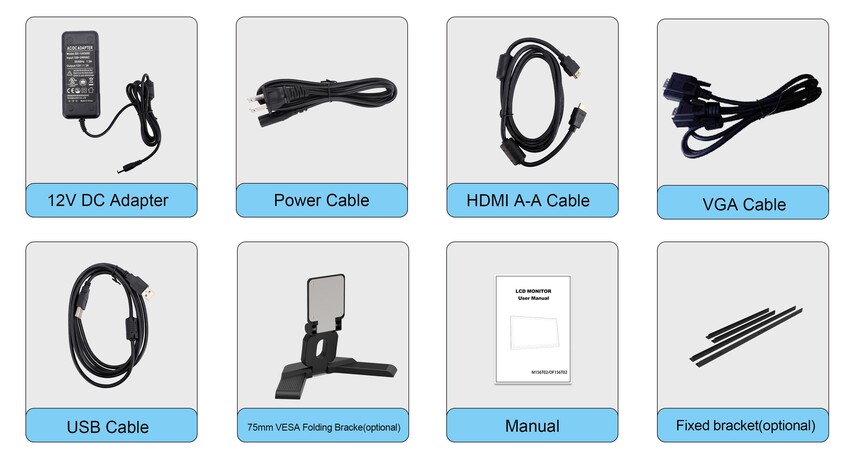

Accessories





×
