M140T03

Short Description:

This 14" monitor combines a 10-point capacitive touch screen with a 400 nits

high-brightness panel and an all metal casing. Featuring versatile interfaces like

HDMI, DP,  TYPE-C,VGA it also supports customizable configurations. The

IP65-rated front panel ensures durability and flexibility.

Model No:                     M140T03

Display:                         14"/1920×1200/400 nits

Input:                             HDMI, DP,TYPE-C,VGA

Optional:                      Touch Function, VESA Bracket

Feature:                         Capacitive Touch Screen

Audio:                             In/Out Speaker, Earphone Jack

Collect
  • Product Detail
  • Specifications




DISPLAYModel No.M140T03/OF140T03
Display Screen14" 8 bit IPS
Physical Resolution1920x1200
 Aspect Ratio16:10
Brightness1000cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI1.4×1  2.0×1
DP1.2a×1
VGA1
TYPE-C1(USB3.1)
USB touch1
USB 2
AUDIO   IN/OUTEarphone1
PC AUDIO IN1
Speaker2
POWERInput VoltageDC 12V
Power Consumption≤25W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension324mm×216mm×31mm
Weight

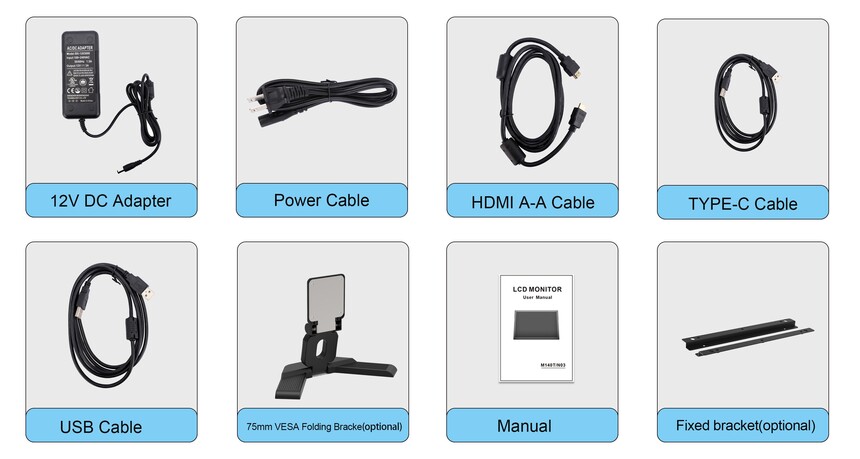

Accessories





×
