M140T01&M140T04

Short Description:

This 14" monitor combines a 10-point capacitive touch screen with a 400 nits

high-brightness panel. Featuring versatile interfaces like HDMI, VGA,AV it also

supports customizable configurations. The IP65-rated front panel ensures

durability and flexibility.


Model No:                      M140T01&M140T04

Display:                         14"/1920×1200/400 nits

Input:                             HDMI,VGA,AV

Optional:                       Touch Function, VESA Bracket

Feature:                        Capacitive Touch Screen

Audio:                            In/Out Speaker, Earphone Jack


Collect
  • Product Detail
  • Specifications



DISPLAYModel No.M140T01/M140T04
Display Screen14" 8 bit IPS
Physical Resolution1920x1200
 Aspect Ratio16:10
Brightness400cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI×1
VGA×1
AV×1(M140T01)
USB touch×1
USB multimedia×1
AUDIO IN/OUTAV Audio in×2(M140T01)
Earphonr×1
PC AUDIO IN×1
Speaker×2
POWERInput VoltageDC 12V
Power Consumption≤25W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension 324mm×216mm×31mm
Weight

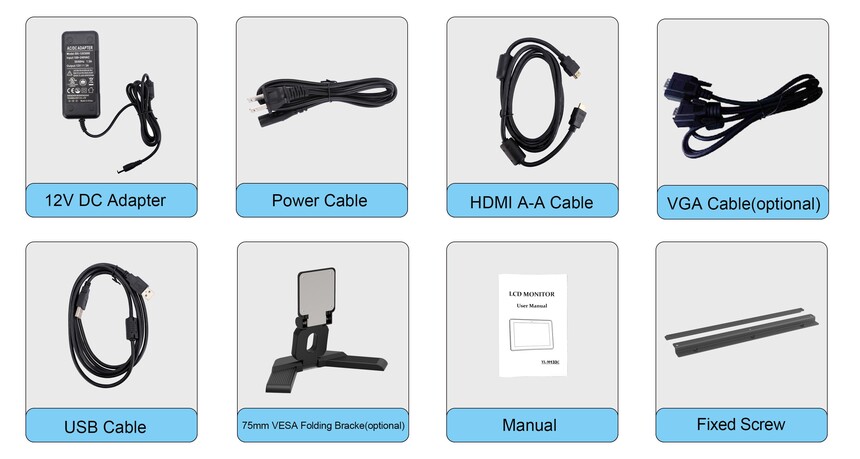

ACCESSORIES




×
