Home >> Products >>Touch Monitor >> M133TH1&M133TH2
Product Detail

M133TH1&M133TH2

Short Description:

This 13.3" monitor combines a 10-point capacitive touch screen with a 1000 nits

high-brightness panel. Featuring versatile interfaces like HDMI, VGA,AV it also

supports customizable configurations. The IP65-rated front panel ensures

durability and flexibility.


Model No:                      M133TH1&M133TH2

Display:                         13.3"/1920×1080/1000 nits

Input:                             HDMI,VGA,AV

Optional:                       Touch Function, VESA Bracket

Feature:                        Capacitive Touch Screen

Audio:                            In/Out Speaker, Earphone Jack





Collect
  • Product Detail
  • Specifications



DISPLAYModel No.M133TH1/M133TH2
Display Screen13.3" 8 bit IPS
Physical Resolution1920x1080
 Aspect Ratio16:9
Brightness1000cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI1
VGA1
USB touch1
USB multimedia1
AUDIO   IN/OUTEarphonr1
PC AUDIO IN1
Speaker1
POWERInput VoltageDC 12V
Power Consumption≤25W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension(YL-M133CH01) 337mm×211mm×30.8mm
 Dimension(YL-M133CH02)327mm×200mm×30.8mm

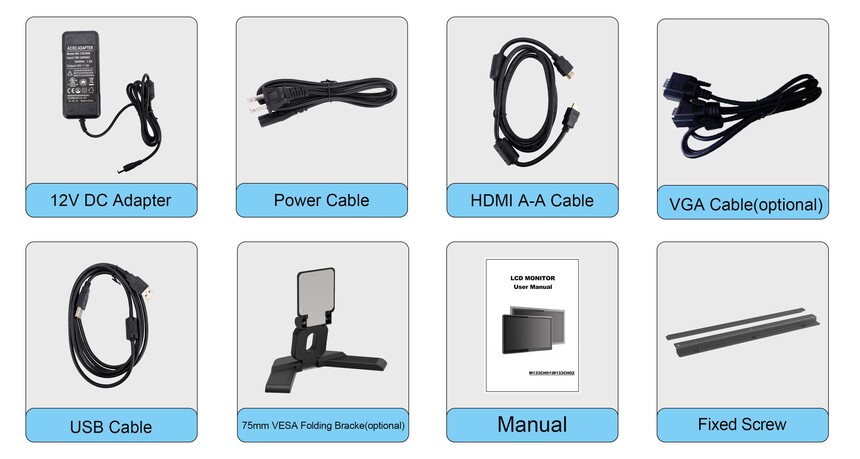

Accessories



×
