M185TH07

Short Description:

This 18.5" monitor combines a 10-point capacitive touch screen with a 1000 nits

high-brightness panel. Featuring versatile interfaces like HDMI, VGA,AV it also

supports customizable configurations. The IP65-rated front panel ensures

durability and flexibility.


Model No:                      M185TH01

Display:                         18.5"/1920×1080/1000 nits

Input:                             HDMI,VGA,AV

Optional:                       Touch Function, VESA Bracket

Feature:                        Capacitive Touch Screen

Audio:                            In/Out Speaker, Earphone Jack

Collect
  • Product Detail
  • Specifications





DISPLAYModel No.M185TH07/M185TH07
Display Screen18.5" 8 bit IPS
Physical Resolution1920x1080
 Aspect Ratio16:9
Brightness1000cd/m2
Contrast1000:1
Viewing Angle170°/170°(HM)
SIGNAL   INPUTHDMI1
DP1
VGA1
DVI1
USB touch1
AUDIO   IN/OUTEarphonr1
PC AUDIO IN1
Speaker2
POWERInput VoltageDC 12V
Power Consumption≤30W
ENVIRONMENTOperating Temperature0°C~50°C
Storage Temperature-20°C~60°C
OTHERDimension(YL-M185CH01) 464mm×289mm×42mm
 Dimension(YL-M185CH02)464mm×289mm×42mm

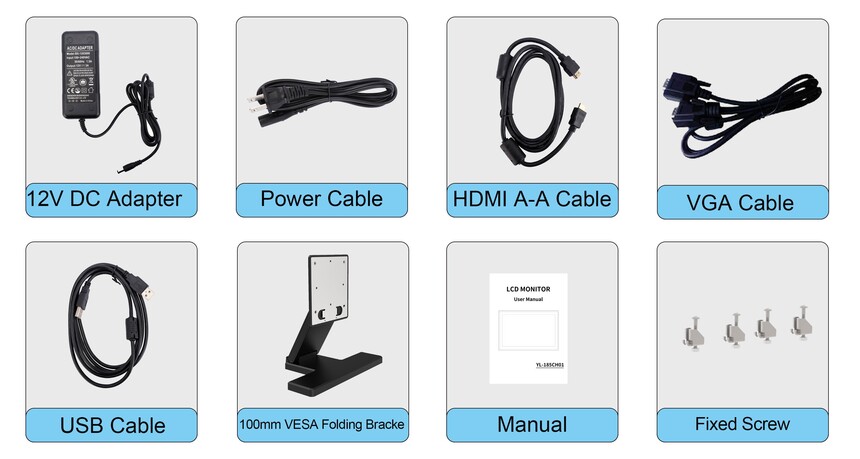

Accessories



×
